SAN-15 Series
SAN-15A
Dynamic SpeakerNon-washableHeat ResistantReflowSmall
※ As for non washable products, dip soldering should not be implemented.
Specifications
| SAN-15A | |
|---|---|
| Nominal Input（W） | 0.5 |
| Impedance（Ω） | 8.0±1.6 |
| Resonance Frequency（Hz） | 800±100 |
| ※ SPL（dB/10cm） | 90±3 |
| Operating Temperature（℃） | -40 ～ +85 |
| Storage Temperature（℃） | -40 ～ +105 |
| Mass（g） | 1.5 |
※Valure applying nominal input（sine wave, averrage of 1K, 1.6K, 2K, 3.2Khz）

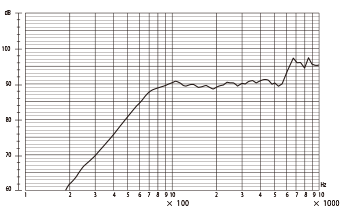

Frequency Response
（SAN-15A）
Dimensions（size：15×15×4mm）
（SAN-15A）
unit：mm/housing material：PA6T
Documents of the Micro Acoustic Transducers
※ Before using our products, please read the technical data which explains the characteristics of our alarms and micro acoustic products as well as precautions.
