SAG-40 Series
SAG-40A, SAG-40C
Dynamic SpeakerNon-washableHest ResistantHigh SPLAutomotive Use
Specifications
| SAG-40 Series | |
|---|---|
| Nominal Input（W） | 0.5 |
| Impedance（Ω） | 8/30 |
| Resonance Frequency（Hz） | – |
| ※ SPL（dB/10cm） | ≧90 |
| Operating Temperature（℃） | -40 ～ +105 |
| Storage Temperature（℃） | -40 ～ +120 |
| Mass（g） | 12 |
※Valure applying nominal input（sine wave, 440～2.2KHz）

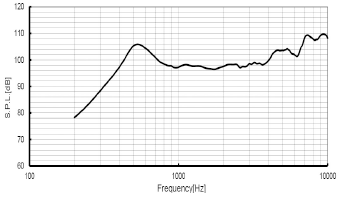

Frequency Response
（SAG-40A）
Dimensions（size：φ40×10.9mm）
（SAG-40A）
unit：mm/housing material：PP
（SAG-40C）
unit：mm/housing material：PP
※ Consult us for the details of variation and installation method.
