TMX Series

TMX Series

TMX-05C3T CS NL, TMX-06A3T NL, TMX-12 SA3NL

SounderNon-washable / WashableDip SolderHigh SPLLow FrequencyAutomotive Use

Specifications

TMX-12 SA3NL TMX-06A3T NL TMX-05C3T CS NL
Rated Voltage(V) 12 6 5
※ Mean Current Consumption(mA) MAX55 MAX75 MAX80
Coil Resistance(Ω) 120±15 36±5 30±5
※ SPL at MIN 10cm(dBA) MIN85(TYP90) MIN85(TYP89)
Rated Frequency(Hz) 1,000 730 800
Operating Voltage(V) 14 7 MAX6
Operating Temperature(℃) -40 ~ +85
Storage Temperature(℃) -40 ~ +120 -40 ~ +85
Mass(g) 9

※Value applying rated voltage(Rated Frequency, 1/2duty, square wave)

Frequency Response

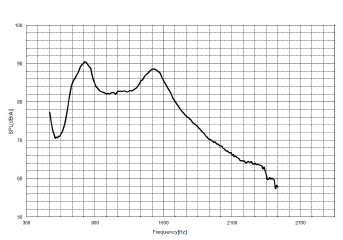

(TMX-05C3T CS NL)

※applied voltage:5V, square wave:1/2duty, distance for measurement:10cm

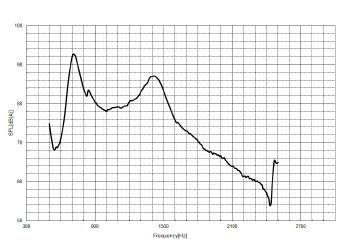

(TMX-06A3T NL)

※applied voltage:6V, square wave:1/2duty, distance for measurement:10cm

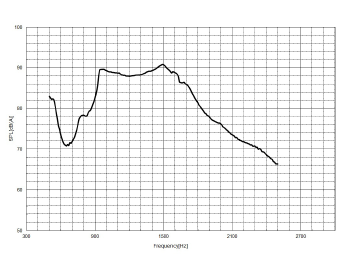

(TMX-12 SA3NL)

※applied voltage:12V, square wave:1/2duty, distance for measurement:10cm

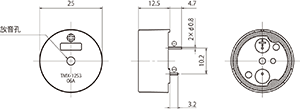

Dimensions(size:φ25×18mm)

(TMX-06A3T NL)

unit:mm/housing material:PPE-M
