SCM-09 Series
SCM-09C
Dynamic SpeakerNon-washableSquareThinSmall typeHigh SPL
※ As for non washable products, dip soldering should not be implemented.
Specifications
| SCM-09C | |
|---|---|
| Nominal Input（W） | 0.4 |
| Impedance（Ω） | 8+0.8/-1.6 |
| Resonance Frequency（Hz） | － |
| ※ SPL（dB/10cm） | 91.5±3dB |
| Operating Temperature（℃） | -30 ～ +70 |
| Storage Temperature（℃） | -40 ～ +85 |
| Mass（g） | 0.9 |
※Valure applying nominal input（sine wave, average of 1K, 1.6K, 2K, 3.2Khz）

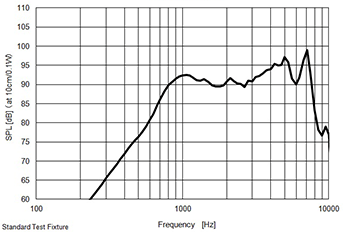

Frequency Response
（SCM-09C）
(sine wave)
Dimensions（size：9x18xt3.4mm）
（SCM-09C）
