QMX Series
QMX-05, QMX-12
SounderNon-washable / WashableDip SolderSmallHigh SPLAutomotive Use
Specifications
| QMX-05 | QMX-12 | |
|---|---|---|
| Rated Voltage（V） | 5 | 12 |
| ※ Mean Current Consumption（mA） | MAX40（TYP33） | MAX40（TYP28） |
| Coil Resistance（Ω） | 47±5 | 140±14 |
| ※ SPL at MIN 10cm（dBA） | MIN85（TYP92） | |
| Rated Frequency（Hz） | 2,400 | |
| Operating Voltage（V） | MAX8 | MAX15 |
| Operating Temperature（℃） | -40 ～ +85 | |
| Storage Temperature（℃） | -40 ～ +85 | |
| Mass（g） | 2 | |
※Value applying rated voltage（2,400Hz, 1/2duty, square wave）

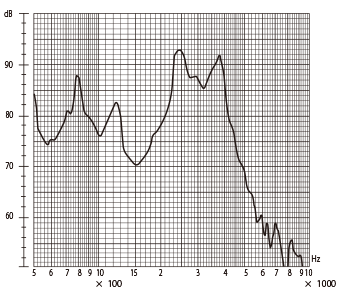

Frequency Response
（QMX-05）
※applied voltage：5V, square wave：1/2duty, distance for measurement：10cm
Dimensions（size：φ12×9mm）
（QMX-05）
unit：mm/housing material：PPE-M
Documents of the Micro Acoustic Transducers
※ Before using our products, please read the technical data which explains the characteristics of our alarms and micro acoustic products as well as precautions.
- Technical data
- Caution for using
- Product list by spec
