QMB(φ16x14mm) Series
QMB-06S/L, QMB-12S/L

SounderNon-washable / WashableDip SolderHigh SPLAutomotive Use
Specifications
QMB-06S/L | QMB-12S/L | |
---|---|---|
Rated Voltage(V) | 6 | 12 |
※ Mean Current Consumption(mA) | MAX40(TYP35) | MAX40(TYP32) |
Coil Resistance(Ω) | 47±7 | 115±17 |
※ SPL at MIN 10cm(dBA) | MIN85(TYP94) | MIN85(TYP97) |
Rated Frequency(Hz) | 2,048 | |
Operating Voltage(V) | MAX12 | MAX18 |
Operating Temperature(℃) | -40 ~ +100 | |
Storage Temperature(℃) | -40 ~ +100 | |
Mass(g) | 7 |
※Value applying rated voltage(2,048Hz, 1/2duty, square wave)

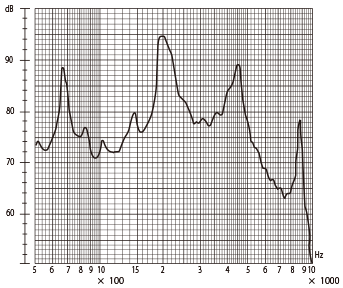

Frequency Response
(QMB-06)
※applied voltage:6V, square wave:1/2duty, distance for measurement:10cm
Dimensions(size:φ16×14mm)
(QMB-06)
unit:mm/housing material:PPE-M
