MLT-HH Series
MLT-03HH, MLT-05HH
SounderNon-washableReflowAuto MountingHigh SPLSmallUpper Sound Port
※ As for non washable products, dip soldering should not be implemented.
Specifications
| MLT-03HH | MLT-05HH | |
|---|---|---|
| Rated Voltage（V） | 3.6 | 5 |
| ※ Mean Current Consumption（mA） | MAX100 | |
| Coil Resistance（Ω） | 17±3 | |
| ※ SPL at MIN 10cm（dBA） | MIN96（TYP102） | MIN100（TYP103） |
| Rated Frequency（Hz） | 3,000 | 3,800 |
| Operating Voltage（V） | MAX4.5 | MAX5 |
| Operating Temperature（℃） | -30 ～ +70 | -40 ～ +85 |
| Storage Temperature（℃） | -40 ～ +85 | |
| Mass（g） | 0.5 | |
※Value applying rated voltage（Rated Frequency, 1/2duty, square wave）

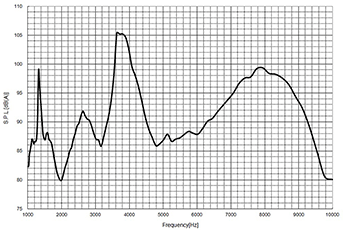

Frequency Response
（MLT-05HH）
※Value applied voltage:5V, square wave:1/2duty, distance for measurement: 10cm
Dimensions（size：8.5×8.5×4mm）
（MLT-03HH）
unit：mm/housing material：LCP
