MLT-G Series
MLT-03GC
SounderNon-washableReflowAuto MountingHigh SPLSmallSide Sound Port
※ As for non washable products, dip soldering should not be implemented.
Specifications
| MLT-03GC | |
|---|---|
| Rated Voltage（V） | 3.6 |
| ※ Mean Current Consumption（mA） | MAX100 |
| Coil Resistance（Ω） | 17±3 |
| ※ SPL at MIN 10cm（dBA） | MIN94（TYP103） |
| Rated Frequency（Hz） | 2,700 |
| Operating Voltage（V） | MAX4.5 |
| Operating Temperature（℃） | -30 ～ +70 |
| Storage Temperature（℃） | -40 ～ +85 |
| Mass（g） | 0.5 |
※Value applying rated voltage（2,700Hz, 1/2duty, square wave）

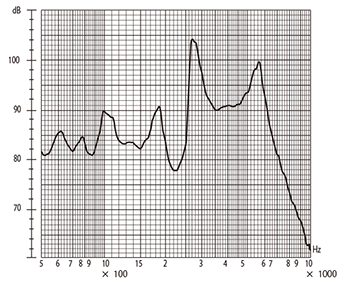

Frequency Response
（MLT-03GC）
※applied voltage：3.6V, square wave：1/2duty, distance for measurement：10cm with recommended cavity
Dimensions（size：8.5×8.5×4mm）
（MLT-03GC）
unit：mm/housing material：LCP
Documents of the Micro Acoustic Transducers
※ Before using our products, please read the technical data which explains the characteristics of our alarms and micro acoustic products as well as precautions.
