HMB Series

HMB Series

HMB-06, HMB-12

Electric Sound typeNon-washable / washableDip SolderLow Current Consumption


HMB-06 HMB-12
Rated Voltage(V) 6 12
Operating Voltage(V) 4~7 8~16
※ Mean Current Consumption(mA) MAX30(TYP27) MAX30(TYP25)
※ SPL at MIN10cm(dBA) MAX85(TYP90) MAX85(TYP91)
※ Basic Frequency(Hz) 2,200±300
☆Response Time(msec) MAX50
Operating Temperature(℃) -40 ~ +85
Storage Temperature(℃) -40 ~ +85
Mass(g) 5

※Value applying rated voltage ☆Value applying min. operating voltage

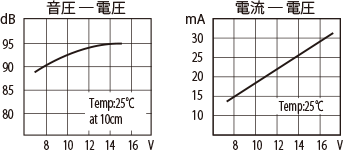

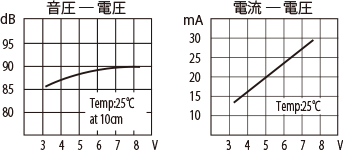

Frequency Response





unit:mm/housing material:PPE-M

※ Longer pin is(+)polarity
