HGP Series
HGP-05AM, HGP-12AM

SounderNon-washable / WashableDip SolderWide BandLow Frequency
Specifications
HGP-05AM | HGP-12AM | |
---|---|---|
Rated Voltage(V) | 5 | 12 |
※ Mean Current Consumption(mA) | MAX70(TYP55) | MAX50(TYP30) |
Coil Resistance(Ω) | 28±5 | 135±20 |
※ SPL at MIN 10cm(dBA) | MIN85(TYP90) | MIN85(TYP91) |
Frequency Band(Hz) | 1,700 ~ 2,200 | |
Operating Voltage(V) | MAX8 | MAX15 |
Operating Temperature(℃) | -40 ~ +90 | |
Storage Temperature(℃) | -40 ~ +100 | |
Mass(g) | 4 |
※Value applying rated voltage(2,000Hz, 1/2duty, square wave)

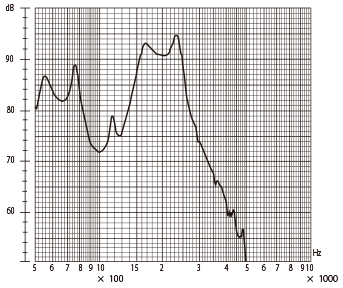

Frequency Response
(HGP-05AM)
※applied voltage:5V, square wave:1/2duty, distance for measurement:10cm
Dimensions(size:φ16×12mm)
(HGP-05AM)
unit:mm/housing material:PPE-M
