TMB Series
TMB-05B, TMB-12B
Electric Sound typeNon-washable / washableDip SolderLow Current ConsumptionSmall
Specifications
| TMB-05B | TMB-12B | |
|---|---|---|
| Rated Voltage（V） | 5 | 12 |
| Operating Voltage（V） | 4～6.5 | 8～16 |
| ※ Mean Current Consumption（mA） | MAX30（TYP22） | MAX30（TYP15） |
| ※ SPL at MIN10cm（dB） | MIN85（TYP90） | |
| ※ Basic Frequency（Hz） | 2,300±300 | |
| ☆Response Time（msec） | MAX50 | |
| Operating Temperature（℃） | -40 ～ +85 | |
| Storage Temperature（℃） | -40 ～ +85 | |
| Mass（g） | 2 | |
※Value applying rated voltage ☆Value applying min. operating voltage
Frequency Response

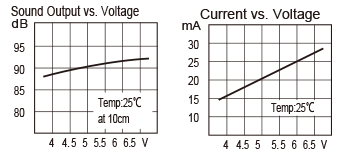

（TMB-05B）

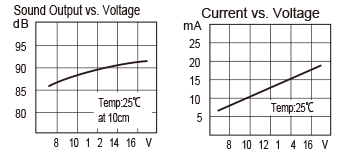

（TMB-12B）
Dimensions（size：φ12×9.5mm）
（TMB-05B）
unit：mm/housing material：PPE-M
※ Longer pin is（＋）polarity
Documents of the Micro Acoustic Transducers
※ Before using our products, please read the technical data which explains the characteristics of our alarms and micro acoustic products as well as precautions.
